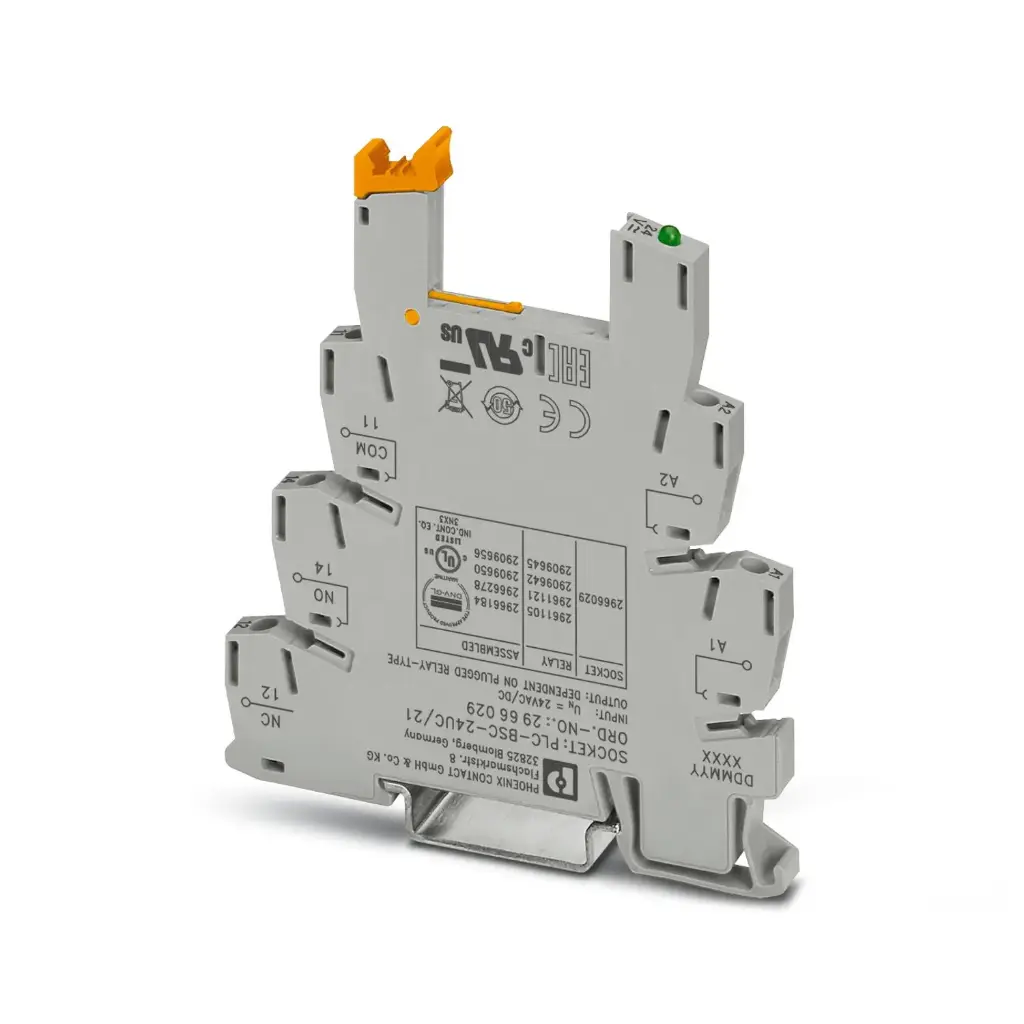

RELAY BASE PHOENIX CONTACT FLAT 5 PIN 24VDC | PLC-BSC- 24UC/21
Terms and Conditions15-days money-back guarantee
Ex-Stock
6.2 mm PLC basic terminal block with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage 24 V AC/DC.
|
Utilization restriction |
|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
|
Product type |
Relay socket |
| Product family | PLC-INTERFACE |
| Application | Universal |
| Operating mode | 100% operating factor |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 3 |
|
Protective circuit |
Bridge rectifier |
|
Nominal input voltage UN |
24 V AC/DC |
|
Connection method |
Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross-section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross-section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm |
|
Status display |
LED |
|
Width |
6.2 mm |
| Height | 80 mm |
| Depth | 94 mm |
|
Color |
gray (RAL 7042) |
| Flammability rating according to UL 94 (Housing) | V0 (Housing) |
|
Ambient conditions |
|
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
|
CE |
|
| Certificate | CE-compliant |
| UKCA | |
| Certificate | UKCA-compliant |
| Shipbuilding approval | |
| Certificate | TAE0000196 |
| Corrosive gas test | |
| Identification | ISA-S71.04. G3 Harsh Group |
| Shipbuilding data | |
| Temperature | D |
| Humidity | A |
| Vibration | B/C |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
|
Electromagnetic compatibility |
Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive |
|
Standards/regulations |
IEC/EN 60664-1 |
|
Mounting type |
DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
